Medical Waste Incinerator with Gas Treatment 1
Medical Waste Incinerator with Gas Treatment 1

Medical Waste Incinerator with Gas Treatment

MCFS series Medical Waste Incinerator is a kind of machine that possess the own intellectual property, features unique and advanced merits with compact size, high burning efficiency, reasonable burning technology, high degree of non-harm etc, it is an ideal choice for waste treatment of hospital, hotels, various stations and industries.
Payment:
T/T
Lead time:
20-35 days
MOQ:
1
Description:
Medical Waste Incinerator with Gas Treatment
Model:
MCFS-500G

Description

MCFS series Medical Waste Incinerator is a kind of machine that possess the own intellectual property, features unique and advanced merits with compact size, high burning efficiency, reasonable burning technology, high degree of non-harm etc, it is an ideal choice for waste treatment of hospital, hotels, various stations and industries.



1. Specifications

1).Smokeless and no harmful to environment.

2).Continuously and fully burning.

3).Simple operation.



2. Advantage

1) Long lifetime

2) Totally enclosed operation

3) Suitable for treating infectious waste

4) Avoid secondary pollution

5) Simple operation



3. Main features

1) Both gas-motivated and oil-motivated are all can be preferred according to customers` needs.

2) Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.

3) Daily waste can be burned once by gasified incineration.

4)Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).

5) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.



4. Application

1) Hospitals

2) Hotels

3) Stations

4) Industries

Detail Information of our Medical Waste Incinerator

Applicable hospital size

(number of beds)

600-800beds

Burning Ability

500kg/ hour

(daily incineration3-6 times)

Size of the Burner

3m*2m*4.8m

Volume of the Burner

Gasification room 3.5m3, secondary buming room 1.5m3drift a long buming room 0.3m3

Third Burner

Optional

Size of the filling entrance

1080mm*1280mm

Chimney

Height 14m out-radius460mm

Blower

Power 1.1kw 0.55kw

Combustion-support combustion machines

Power 0.22kw,fuelconsumption7-14kg/h

Re-burning machine

Power 0.37kw,fuelconsumption15-26kg/h

Running voltage

220V or380V

Weight

About 14800 kg



Standard Configuration of our MCFS-500G Medical Waste Incinerator



No

Name

Amount

Specifications

Notes

1

Incinerator

1

A3 steel refractories

Main part

2

The 2 combustion chamber and the combustion chamber mixed

1

A3 steel refractories



Installed in the main body

3

Electric box

1



The main body

4

Fluegas purification system

1

A3 steel refractories



Installed in the main body

5

Combustion burner

1

BTL-14

The main body

6

Reburning burner

1

BTL-28G

The main body

7

blower

1

1650W/220V/380V

The main body

8

Ash rake

1

200mm×4000mm

Guangzhou Mecan

9

Pump

1



The main body

10

fuel tank

1



The main body

11

fuel tank bracket

1

600mm*2200mm

Guangzhou Mecan

12

Chimney

2

460mm*10000mm

460mm*5000mm

Guangzhou Mecan

13

Filter switch

5



The main body

14

Thermocouple

2

1200℃

The main body

15

Operational procedures

1



The main body

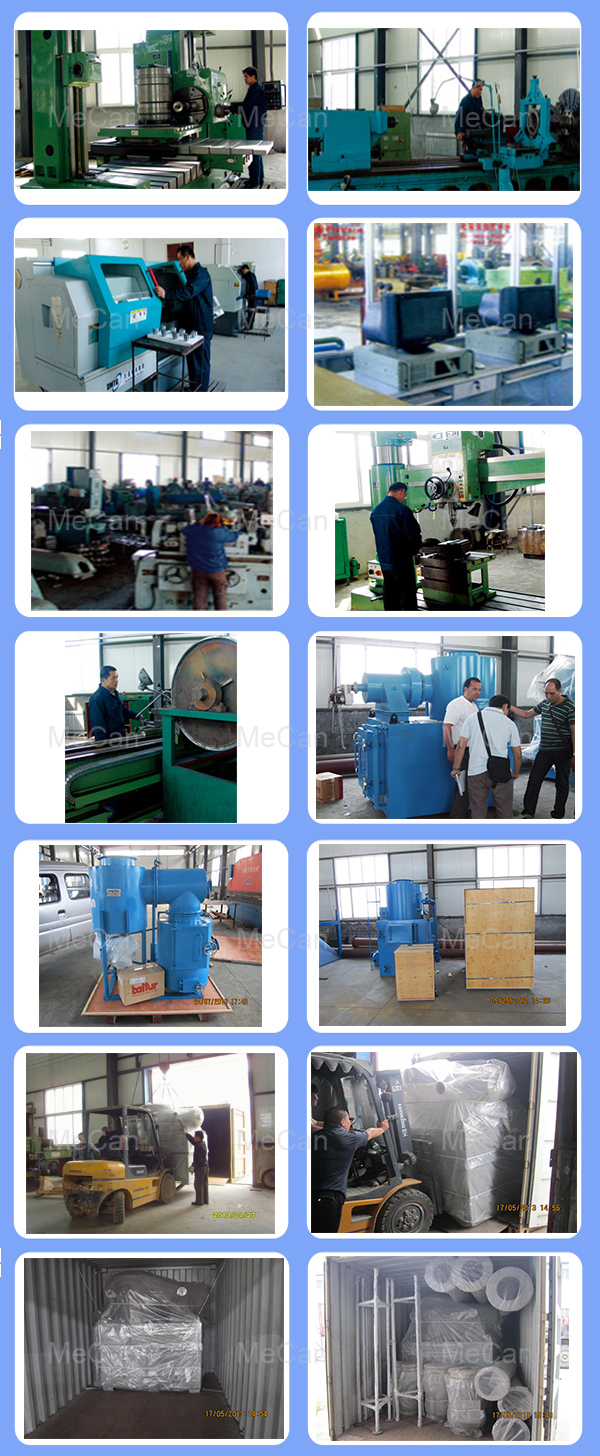

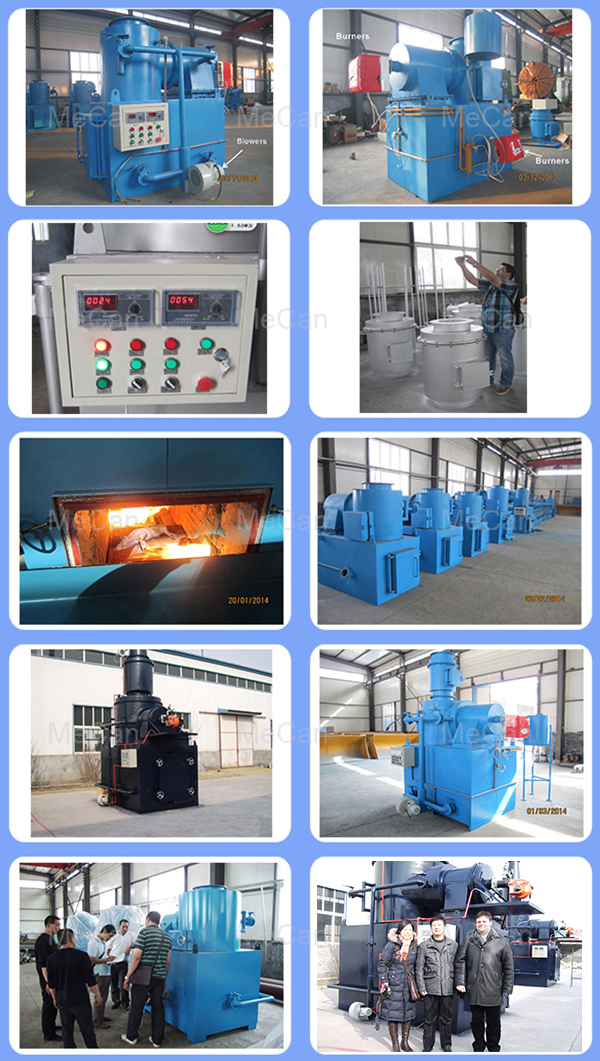

Real products' pictures of our medical waste incinerator

Medical Waste Incinerator with Gas Treatment 2

Medical Waste Incinerator with Gas Treatment 3

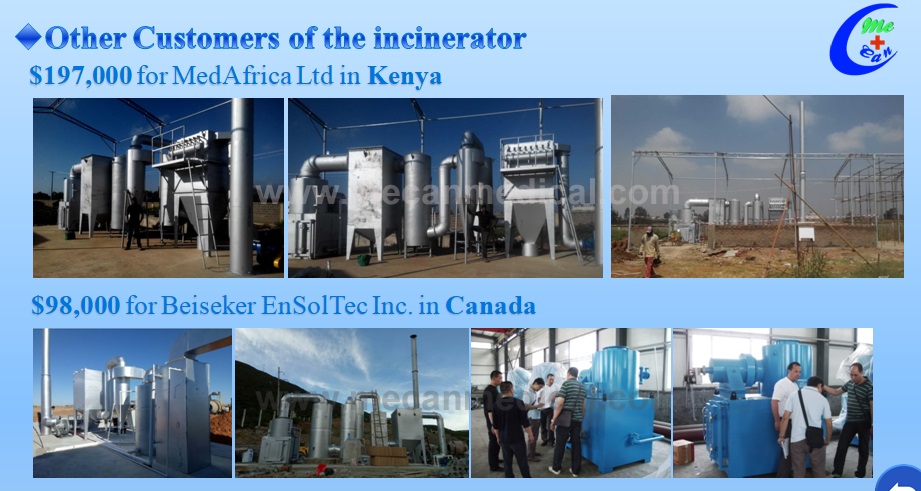

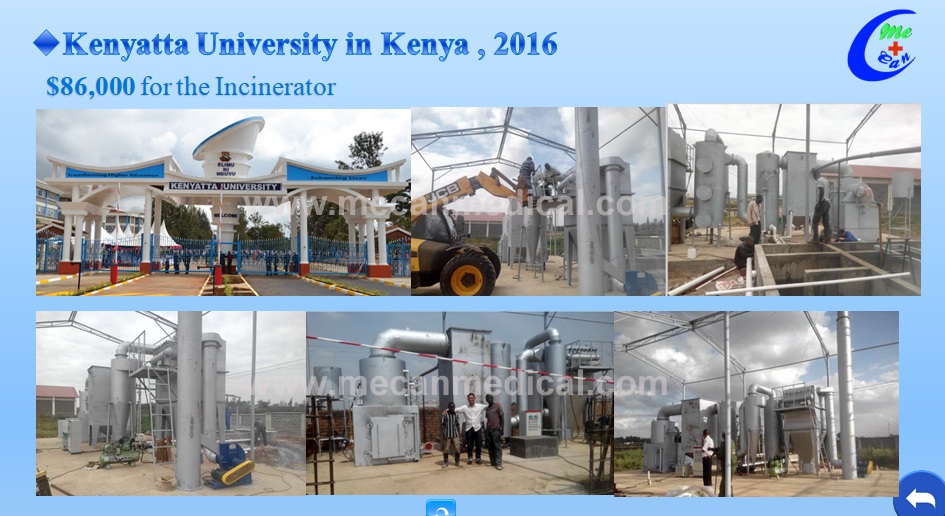

Some Case of our Medical Waste Incinerator

Medical Waste Incinerator with Gas Treatment 4Medical Waste Incinerator with Gas Treatment 5

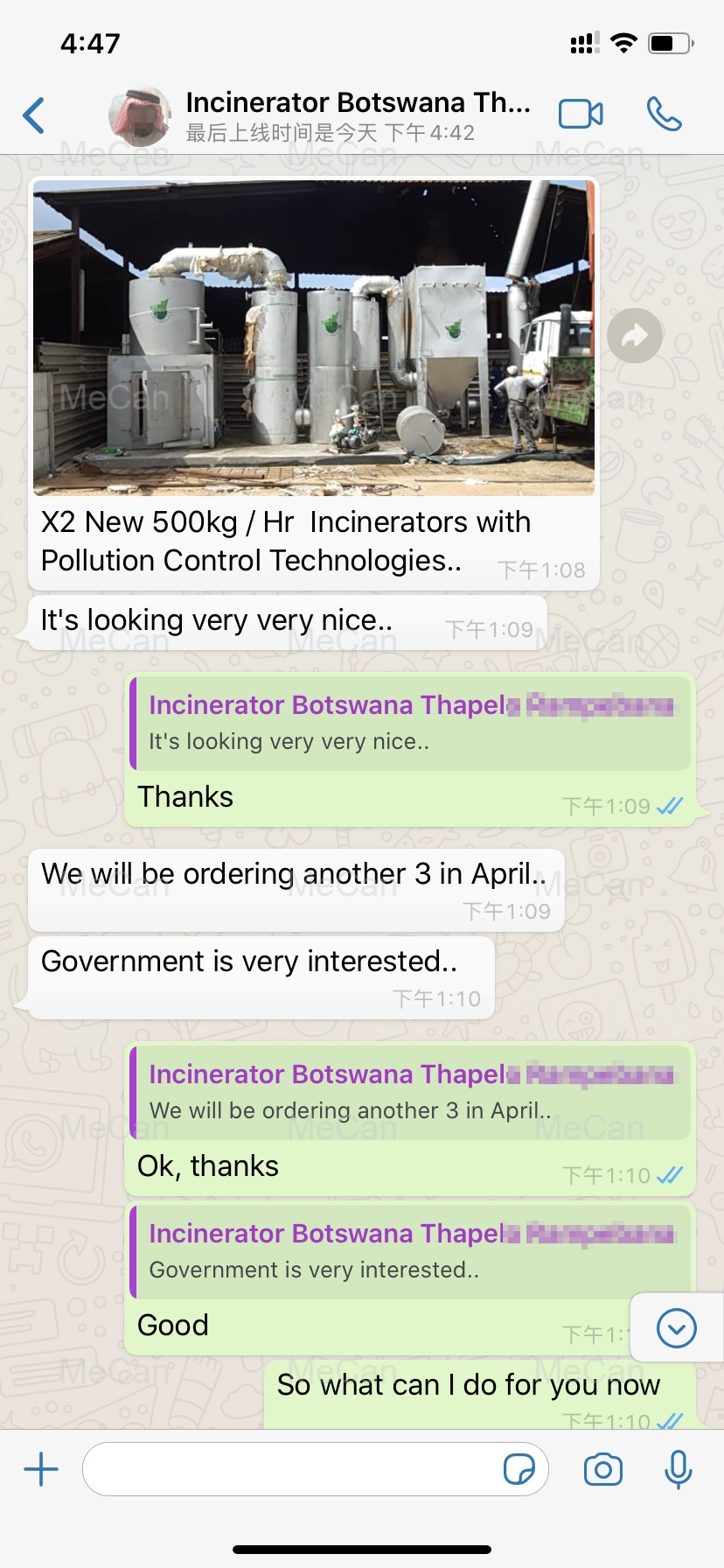

Feedback of our Medical Waste Incinerator from Botswana

Medical Waste Incinerator with Gas Treatment 6

Some Video of MeCan Medical Waste Incineration, please find it on Youtube, and here are the web address:



Installation of gas purification room of incinerator

https://youtu.be/BfKmU5oC5Y4



Connect the oil tank to incinerator

https://youtu.be/RHa3uhgkFtU



Filling of oil tank of incinerator

https://youtu.be/ZQ9IvQUH4dE



Take out the gas of the connetation from oil tank to incinerator

https://youtu.be/kpCYHDt9ZCI



Operation of incinerator

https://youtu.be/Z8MqN5sp1cA
